More Information
Features/Benefits	Highly efficient bar & plate intercooler core constructed of T5052 Aluminium Drastically reduces charge air temperature for cooler, more dense air Significantly more resistant to heat-soak Over 60% more volume than OEM intercooler T6061 cast Aluminium end tanks Intercooler Weight: 24.4 lbs Direct OEM replacement; no bumper, radiator support, or other trimming required Lightweight Aluminium Charge Pipe tubing 60mm Internal Charge Pipe Diameter OEM DV port connection maintained Smooth airflow transitions Multi-ply reinforced silicone hoses Fluorolined inner layer on silicone hoses for oil penetration resistance Factory wiring harness mounting points 1/8” NPT Water/Meth injection port w/ plug Integrated MAP sensor bung Durable wrinkle black powder coated finish
Hardware Included	Unitronic Direct Fit Intercooler Core for the MK8 Golf R Throttle Body Pipe Turbo Discharge Pipe Silicone Turbo Outlet Hose Silicone Throttle Body Hose Silicone Intercooler Hoses High Quality Hose Clamps and Installation Hardware
Install Specifications	Unitronic's Intercooler and Charge Pipe Upgrade Kit for the MK8 Golf R is a direct OEM replacement bundle. Using 3D modeling technology, these items provide a seamless, bolt-on installation which can be completed within a matter of hours. Basic mechanical knowledge and tools will help accomplish the job in a timely manner. DIFFICULTY LEVEL: 3/5 Installation Guide (for Intercooler) Installation Guide (for Charge Pipe Kit)

Unitronic Intercooler Upgrade & Charge Pipe Kit for MK8 Golf R

Out of stock

SKU

UH032-ICA

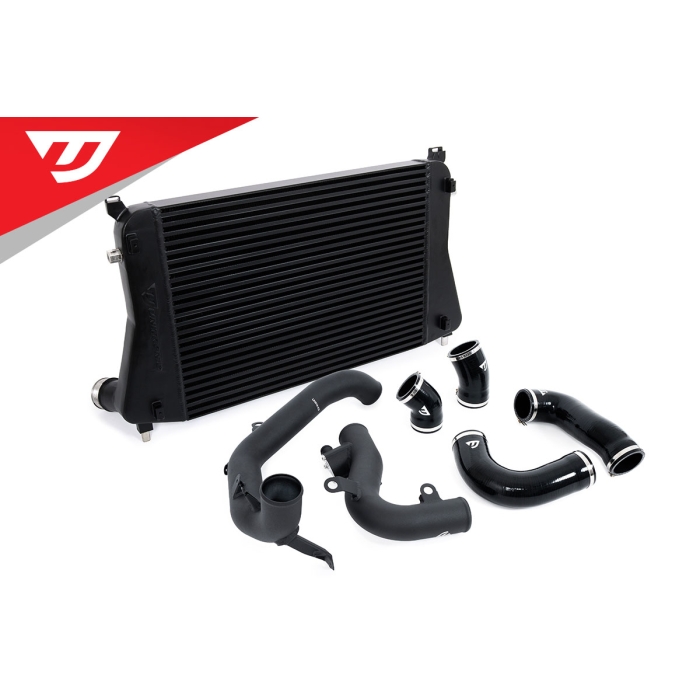

Unitronic's Intercooler and Charge Pipe Upgrade Kit for the MK8 Golf R® 2.0TSI® EVO4 is a direct OEM replacement kit with the ability to support 600HP and more.

This kit features a massive 23.5" x 2" x 16.5" bar and plate intercooler core made from T5052 aluminium and T6061 cast aluminium end tanks with proprietary internal fin and louver configuration. An upgraded turbo discharge pipe, throttle body pipe, silicone turbo outlet hose, silicone throttle body hose and silicone intercooler inlet/outlet hose is also included with this bundle.

Combined, this complete kit will help resist heat-soak and provide optimal and efficient cooling in any driving condition while eliminating restrictions in the boost (charge) piping which runs from the turbocharger to the engine, allowing for unrestricted airflow and maximum performance.

Recommended Software

Stage 1
Stage 1+
Stage 2
